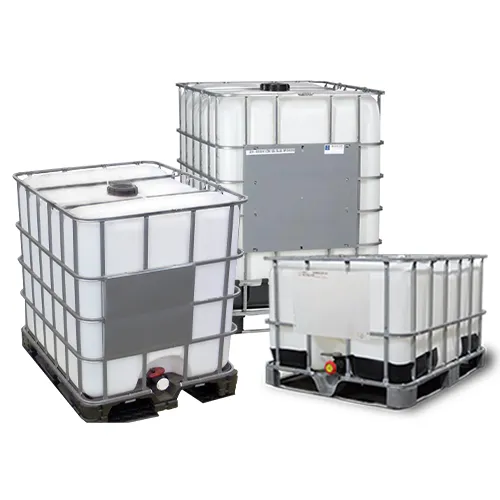

These cage totes are completely brand new w/ galvanized steel support cages and pallet bases (except for the 275 USG tote with poly pallet base option). This selection of three different capacity options is a very popular style of liquid handling tote, designed for efficient and economical shipping, handling, dispensing and storing of a wide variety of bulk food and chemical liquids where less than tanker load quantities are required.
The totes are fork-liftable/pallet jack moveable and stackable two-high when full and stationary (higher when empty), and are designed to maximize space on flat decks, in dry vans, in shipping containers and inside warehousing for optimum space efficiency.
Availability: full truckloads or less, from BARR Plastics facility (BC, Canada), or in full truck load quantity from factory (IL, USA).
| Capacity | Part # | Dia./ Width | Length | Height | Fill/Discharge Opening | Weight (lbs) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| USG | IG | LTR | Premium Weight 1.5-1.7 SG | Heavy Weight 1.9 SG | ||||||
| 135 | 112 | 511 | PPCP135UNSTD (STEEL/COMPOSITE BASE) | N/A | 40" | 48" | 30.5" | Fill 6" / Discharge 2" | 100 | |
| 275 | 230 | 1040 | PPPP275UNSTD (POLY BASE) | N/A | 40" | 48" | 46" | Fill 6" / Discharge 2" | 144 | |
| 275 | 230 | 1040 | PPCP275UNSTD (COMPOSITE BASE) | N/A | 40" | 48" | 46" | Fill 6" / Discharge 2" | 144 | |
| 330 | 275 | 1249 | PPSP330UNSTD (STEEL BASE) | N/A | 40" | 48" | 54" | Fill 6" / Discharge 2" | 160 | |
| 330 | 275 | 1249 | PPCP330UNSTD (COMPOSITE BASE) | N/A | 40" | 48" | 54" | Fill 6" / Discharge 2" | 160 | |
Accessories
| Part # | Img | Description |
|---|---|---|
| WSF210 | 2" Poly Spinweld Valve w/ QDC Outlet (Santoprene Gasket) | |
| WSMT210 | 2" Poly Spinwled Valve w/ NPT Outlet (Santoprene Gasket) | |
| TL651E | 6" Tank Lid w/ Unvented 2" Plug w/ EPDM Gasket | |
| TL652S | 6" Tank Lid w/ Vented 2" Plug w/ Santoprene Gasket | |
| TL652E | 6" Tank Lid w/ Vented 2" Plug w/ EPDM Gasket | |
| TA283 | 2" Buttress x 2" Male NPT Threads w/ Santoprene Gasket | |
| TA283QD | 2" Buttress x 2" Male Adapter QDC w/ Santoprene Gasket | |
| 201FPT | 2" Female NPT Cap | |
| 60FDIN | 60MM DIN Cap (Buttress Thread) | |
| V20207 | 11" Polyurethane Lanyard | |
| 200CAP | 2" Camlock Dust Cap | |
| 202CAP | 2" Camlock Dust Cap | |
| 760DOTV | Combination Pressure / Vacuum Vent Valve w/ Viton Gasket, 4.0PSI Pressure Relief | |
| ANPTW34 | 2" FPT x 3/4" MGHT | |
| AQDW34 | 2" FC x 3/4" MGHT | |
| ABFW34 | 2" Female Buttress x 3/4" MGHT | |
| A2BF2NM | 2" Female Buttress x 2" BSP | |
| A2BFQD2-E | 2" Female Buttress x 2" MC |
Standard Features:
- Internal bottle or tank made from high quality food and beverage grade certified virgin HDPE
- All totes come factory sealed at both openings with tamper evident seals
- Drain valves are quality and replaceable 2", ¼ turn ball valves with Viton seals and 2 MPT connection w/ dust cap
- Top is fitted with a standard 6 non-vented and sealed screw lid that can be fitted with a vacuum and pressure vent fitting or other type of fitting as required
- Totes feature a slightly sloped, bottom discharge channel into a 2" outlet with ball valve for positive drainage.
- Pumps, valves, hoses and other fixtures and other customization options can easily be made or mounted to these vessels to create a variety of liquid handling systems for applications such as liquid transfer, blending and dispensing.
- A variety of adapter inlet and outlet fittings and vents are available from BARR for specific liquid handling processes.
